Description
Specifications:

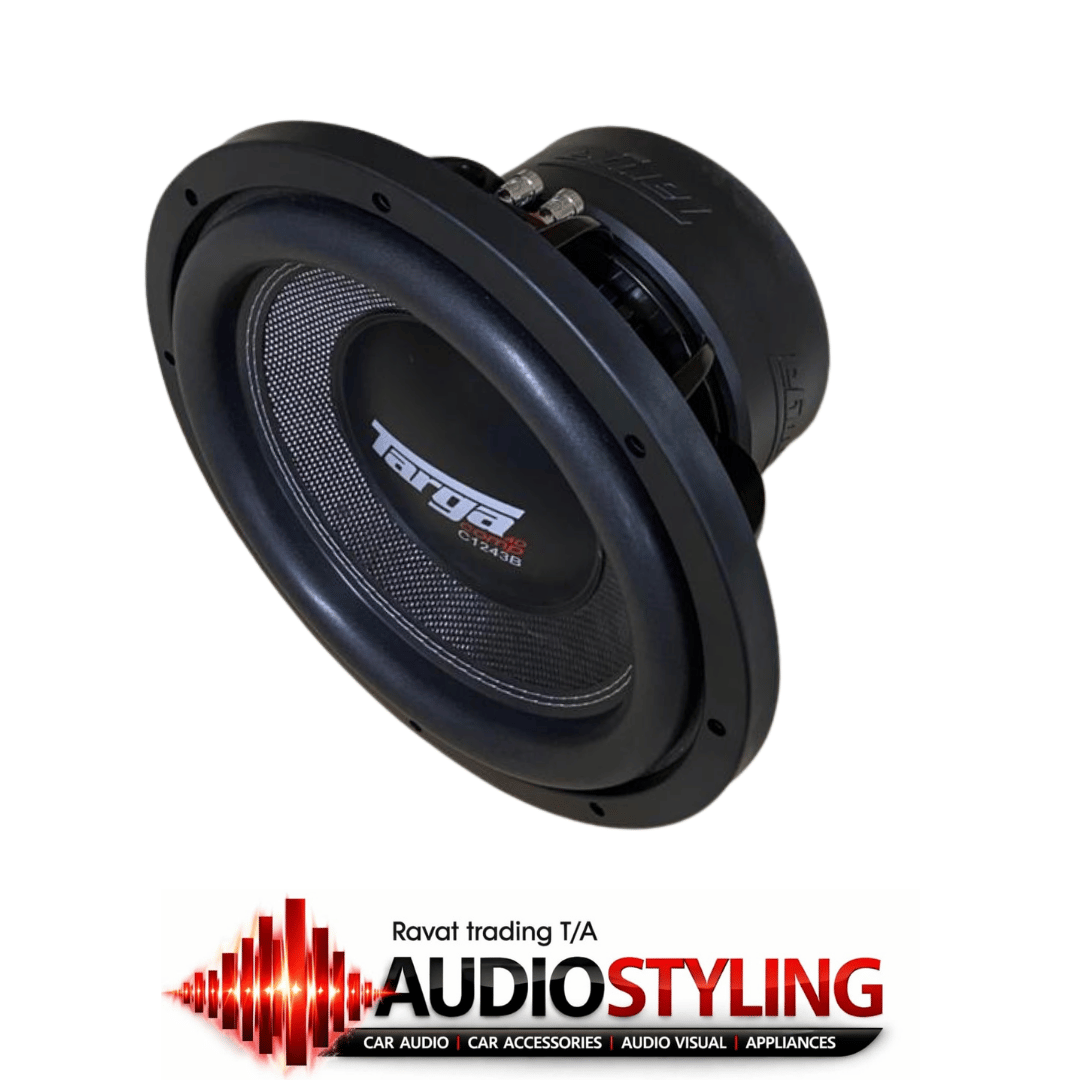

– Model: TG-C1243B
– Size: 12″ / 300mm
– Impedance: Usually D2 = 1Ω parallel / 4Ω series. If D4 = 2Ω parallel / 8Ω series. Check magnet sticker.
– RMS: 2000W-2500W RMS daily (4000W+ burp in correct box)
– MAX: 8000W MAX
– Fs: ∼35-42Hz
– Sensitivity: ∼89-90dB
– Power: 2000W-2500W RMS TRUE (box says 4000W-8000W RMS/MAX, real daily 2000W) / 8000W MAX dynamic
– Coil: 3″ – 3.5″ (76-89mm) black high-temp copper 4-layer on aluminum former, Dual 2-Ohm D2 (2Ω+2Ω = 1Ω parallel) on most B models – some D4 (4+4 = 2Ω) batches exist

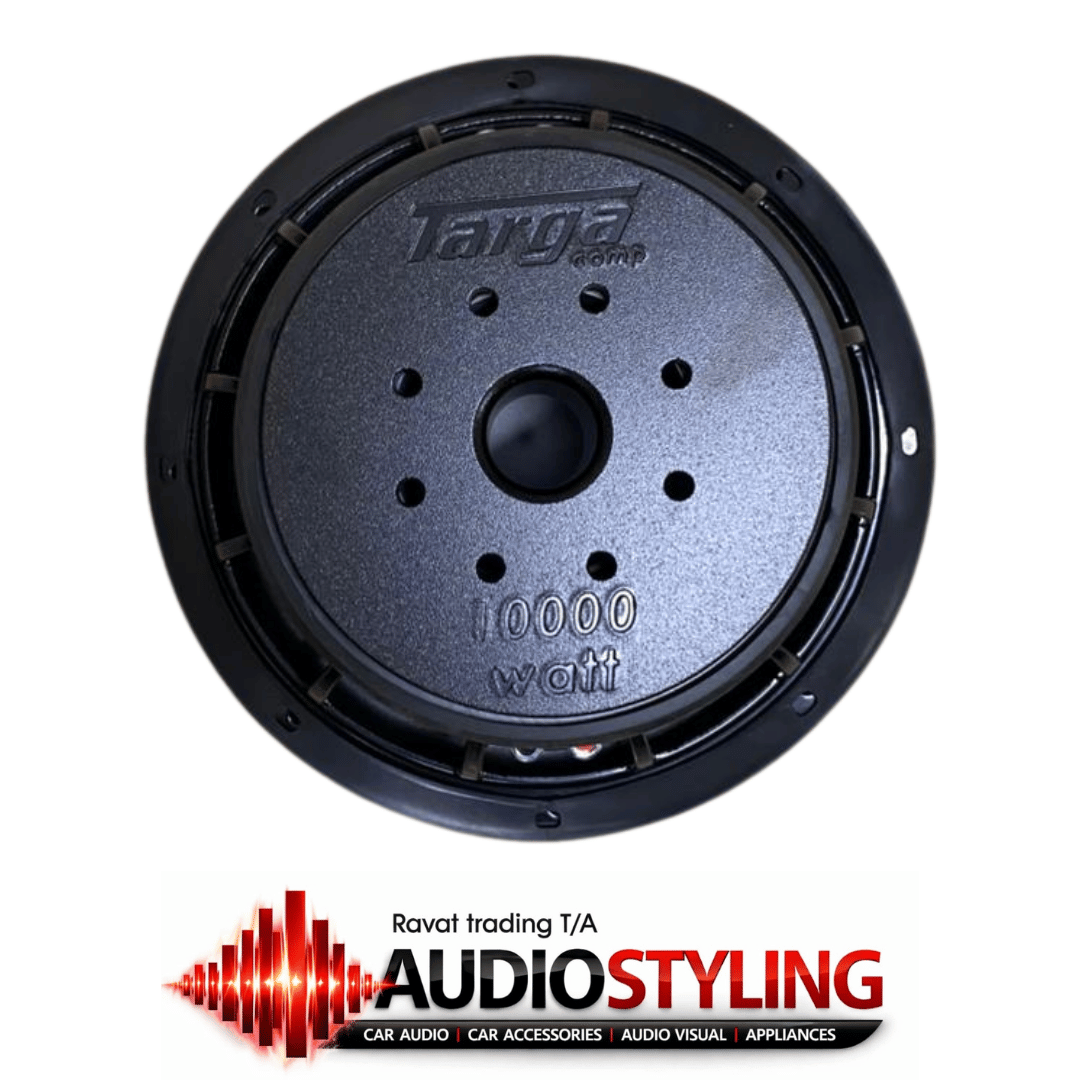

– Motor: Quad-stack ∼200-220oz ferrite, massive vented T-yoke with cooling

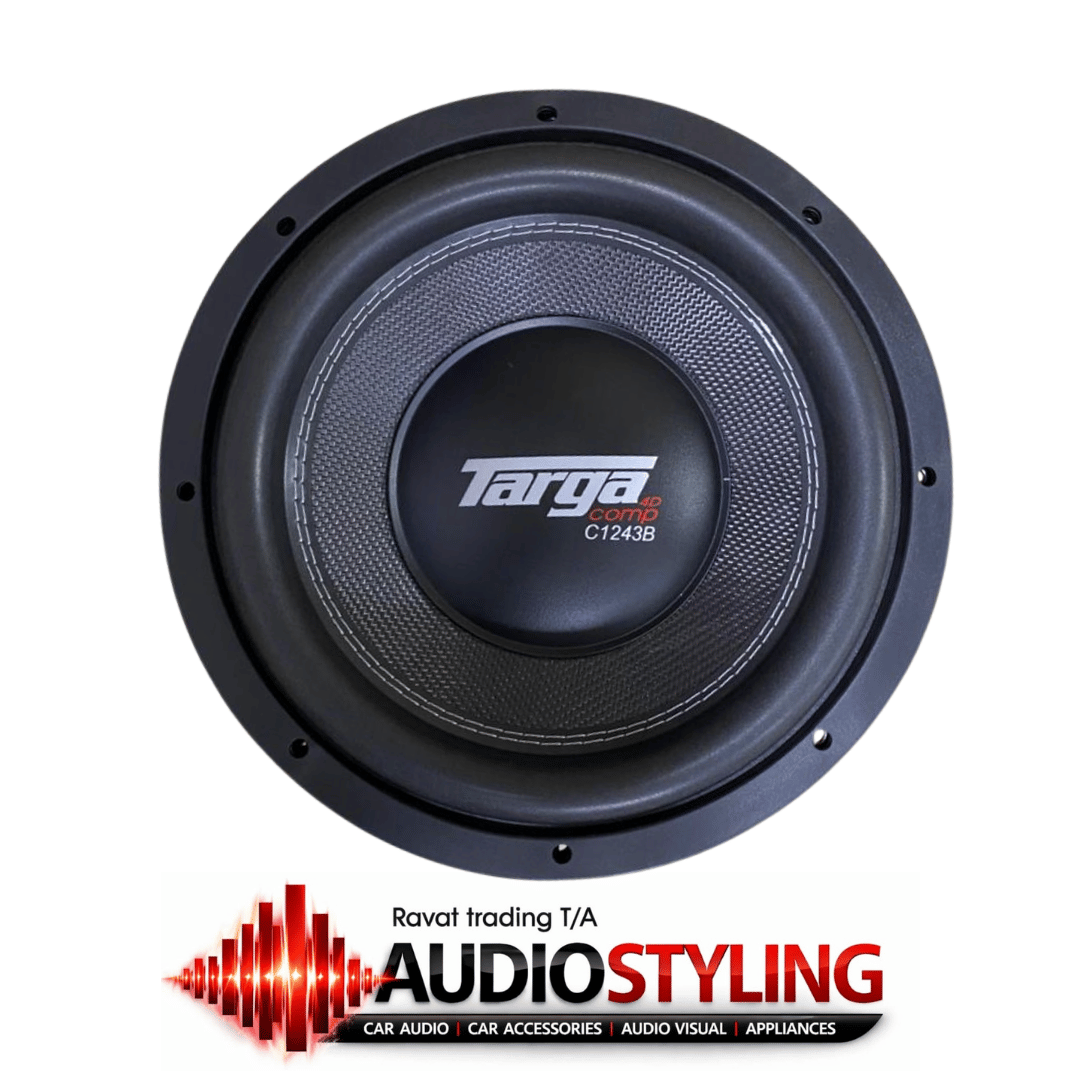

– Cone: Black reinforced paper / composite, high-roll foam surround triple-stitched, big aluminum dustcap with Targa logo

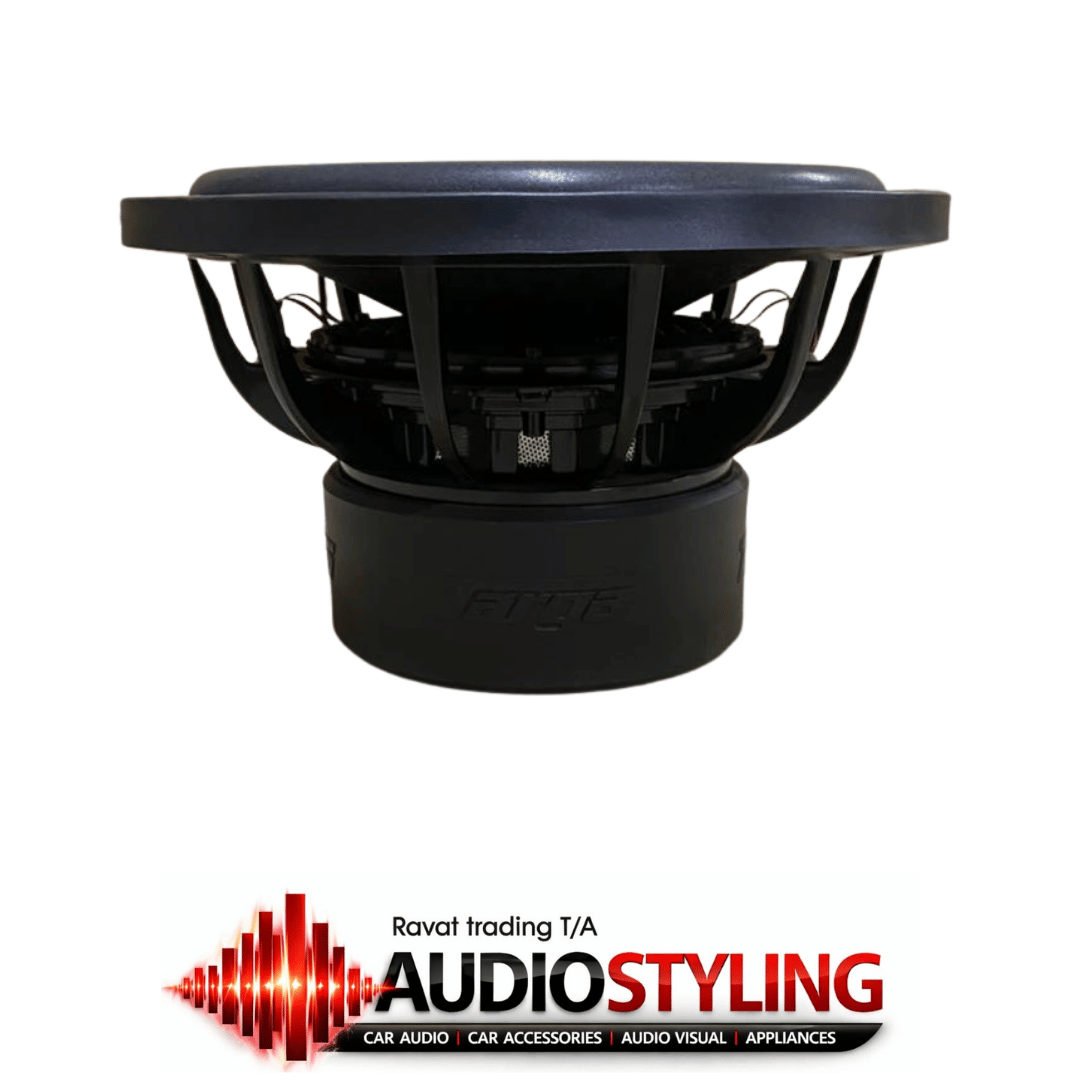

– Basket: Full heavy cast aluminum 12″ – 12 spoke
– Suspension: Triple Nomex spiders with bolted sewn leads
