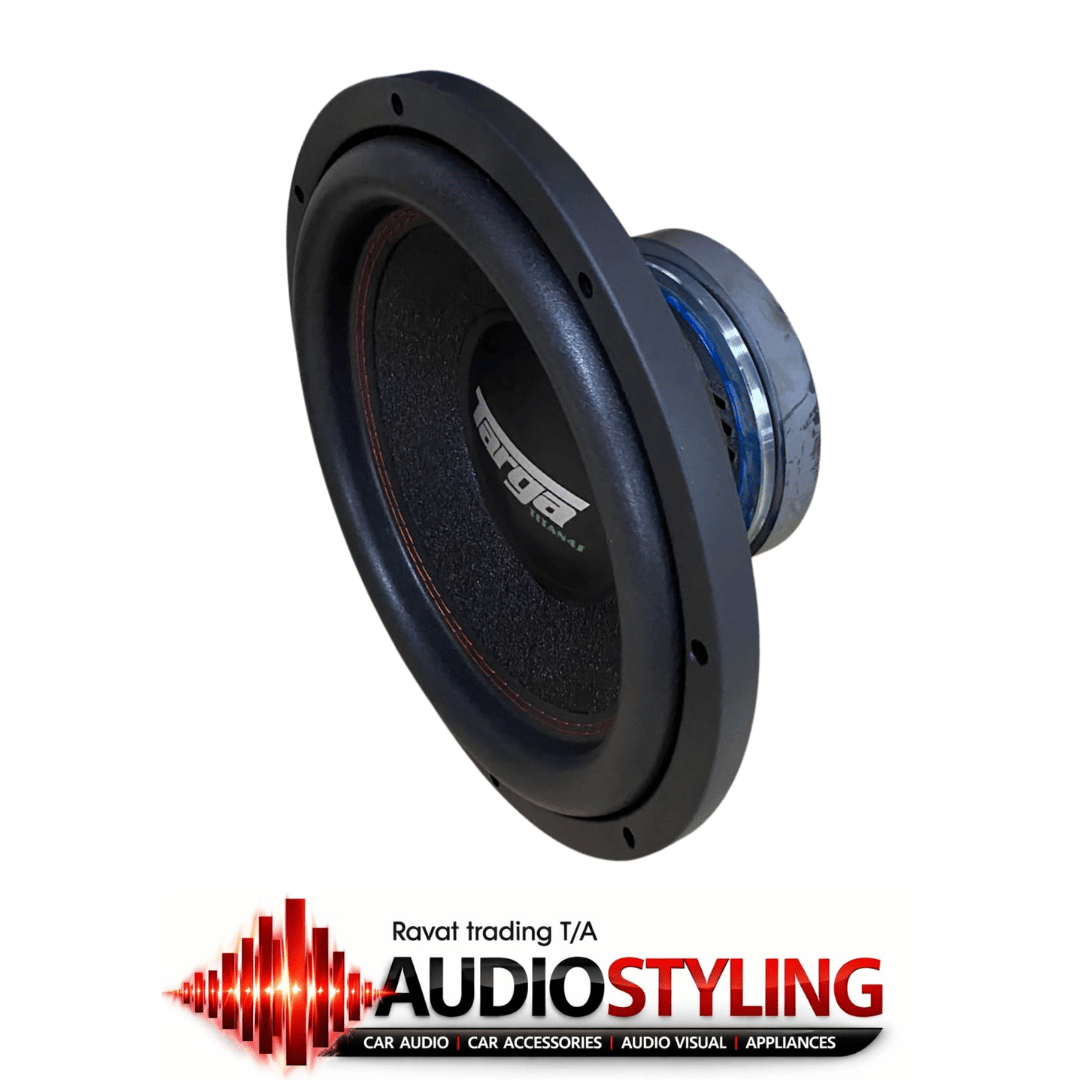

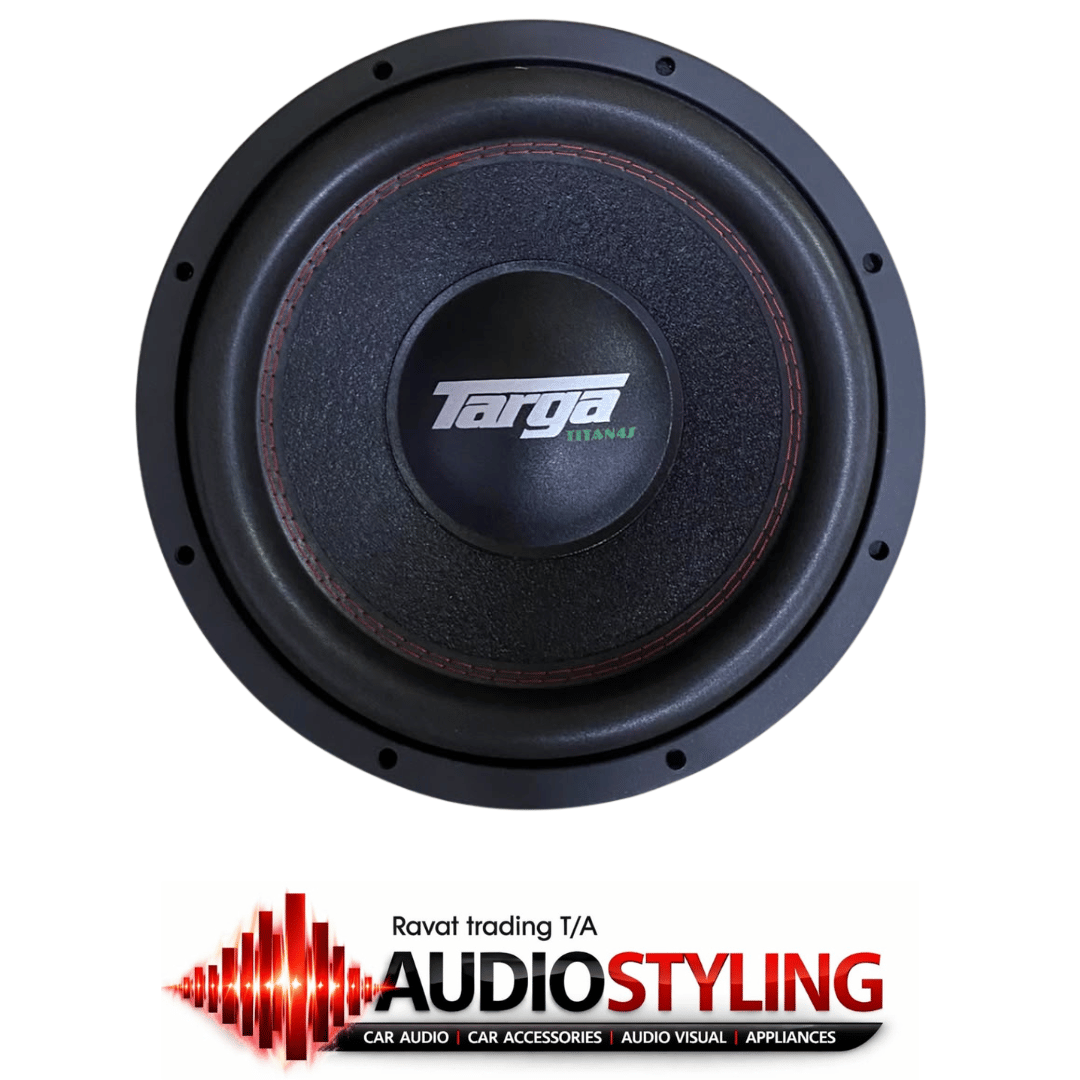

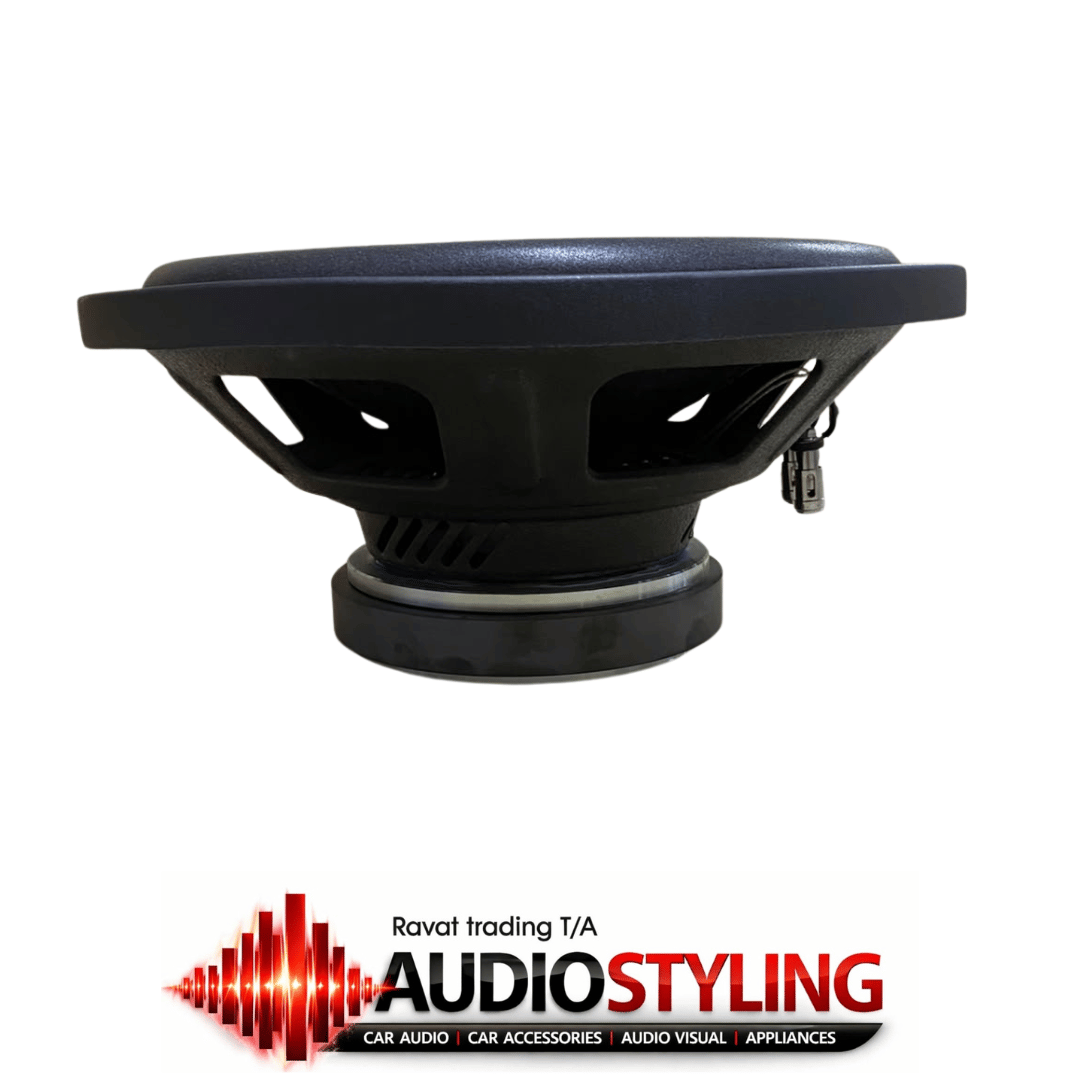

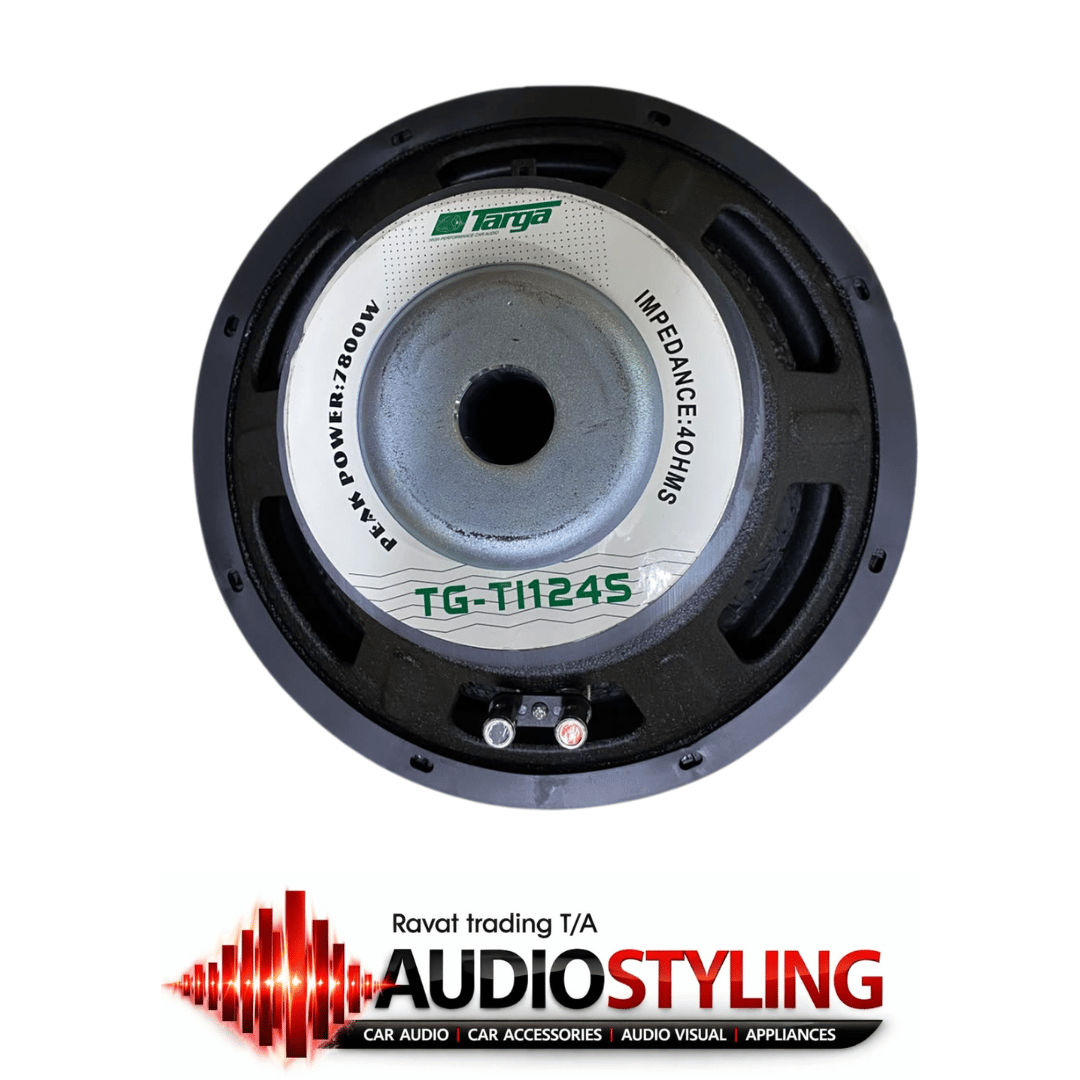

Targa TG-TI124S 12” Subwoofer

Description

SPECIFICATION VALUE
*Model* TG-TI124S / TI-124S
*Size* 12″ / 300mm
*Series* TI – Entry Budget
*Impedance* Single 4-Ohm (S4) – Single Voice Coil
*MAX Power* 600W MAX
*RMS Power* 250W – 350W RMS Continuous
*Music Power* 450W
*Voice Coil* 1.5″ / 38.6mm Copper 2-Layer, Kapton Former
*Magnet Type* Ferrite 40oz Single Slug
*Magnet Diameter* 120mm
*Basket* Pressed Steel Black
*Cone* Non-Pressed Paper, Foam Surround, Single Stitch
*Dustcap* Polypropylene / Paper with Targa TI Logo
*Spider* Single Cotton / Nomex
*Fs (Resonance)* 42 Hz
*Qts* 0.65
*Vas* 68 Liters
*Sensitivity (SPL)* 89 dB (1W/1m)
*Xmax* 6mm One Way
*Mounting Depth* 125mm / 4.9″
*Mounting Cutout* 280mm / 11″
*Outer Diameter* 312mm / 12.2″
*Weight* 3.2 kg – 3.8 kg
*Box Type* Sealed or Ported
*Sealed Box* 1.0 – 1.3 http://cu.ft (28 – 36 Liters)
*Ported Box Net* 1.5 – 2.2 http://cu.ft (42 – 62 Liters)
*Ported Best Daily* 1.8 http://cu.ft NET @ 42Hz
*Port Size for 1.8 http://cu.ft* Slot Port 2.5″ x 10.5″ = 26.25 http://sq.in / Length 18″
*Aero Port Option* 1x 4″ Aero, Length 13″
*Frequency Response* 35Hz – 800Hz
