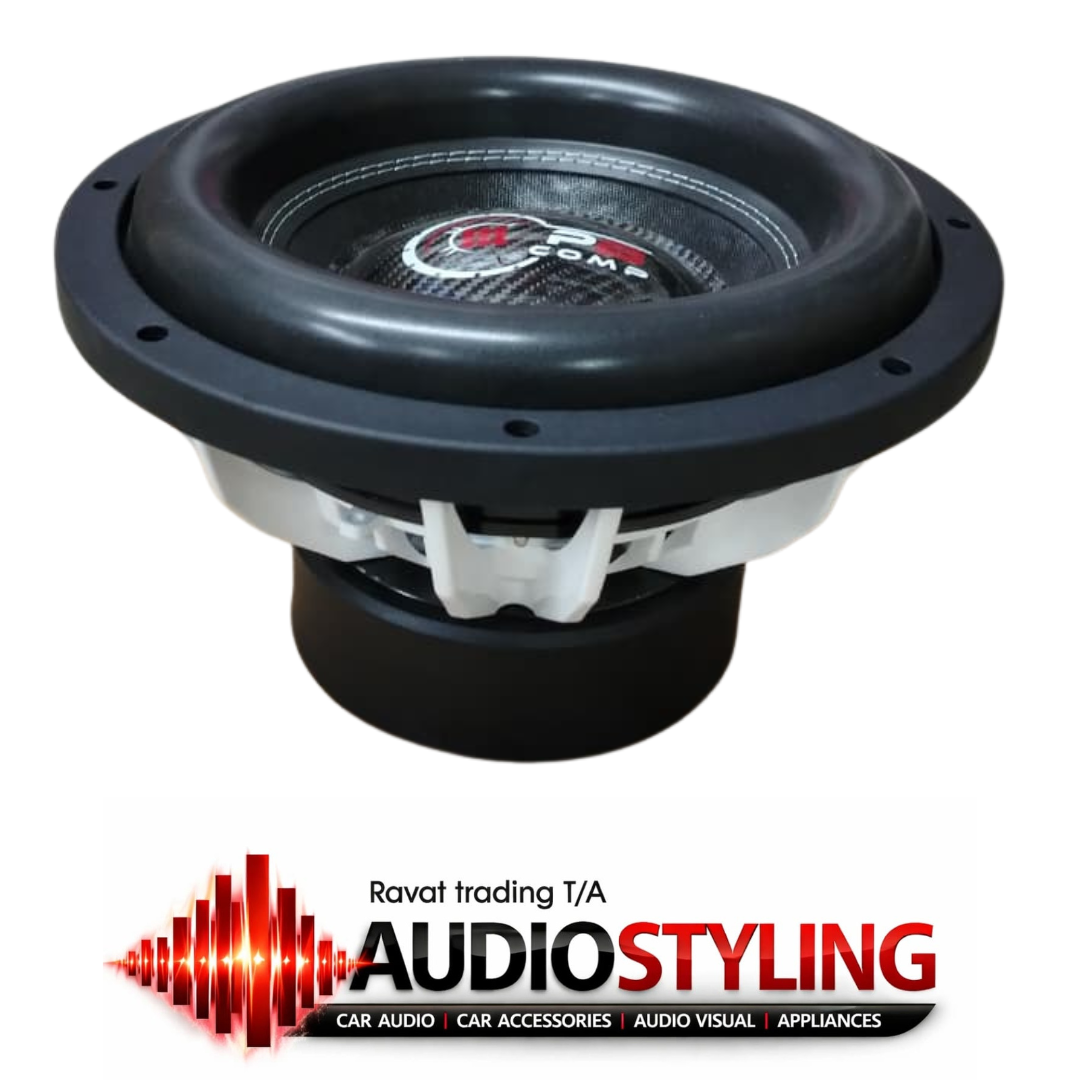

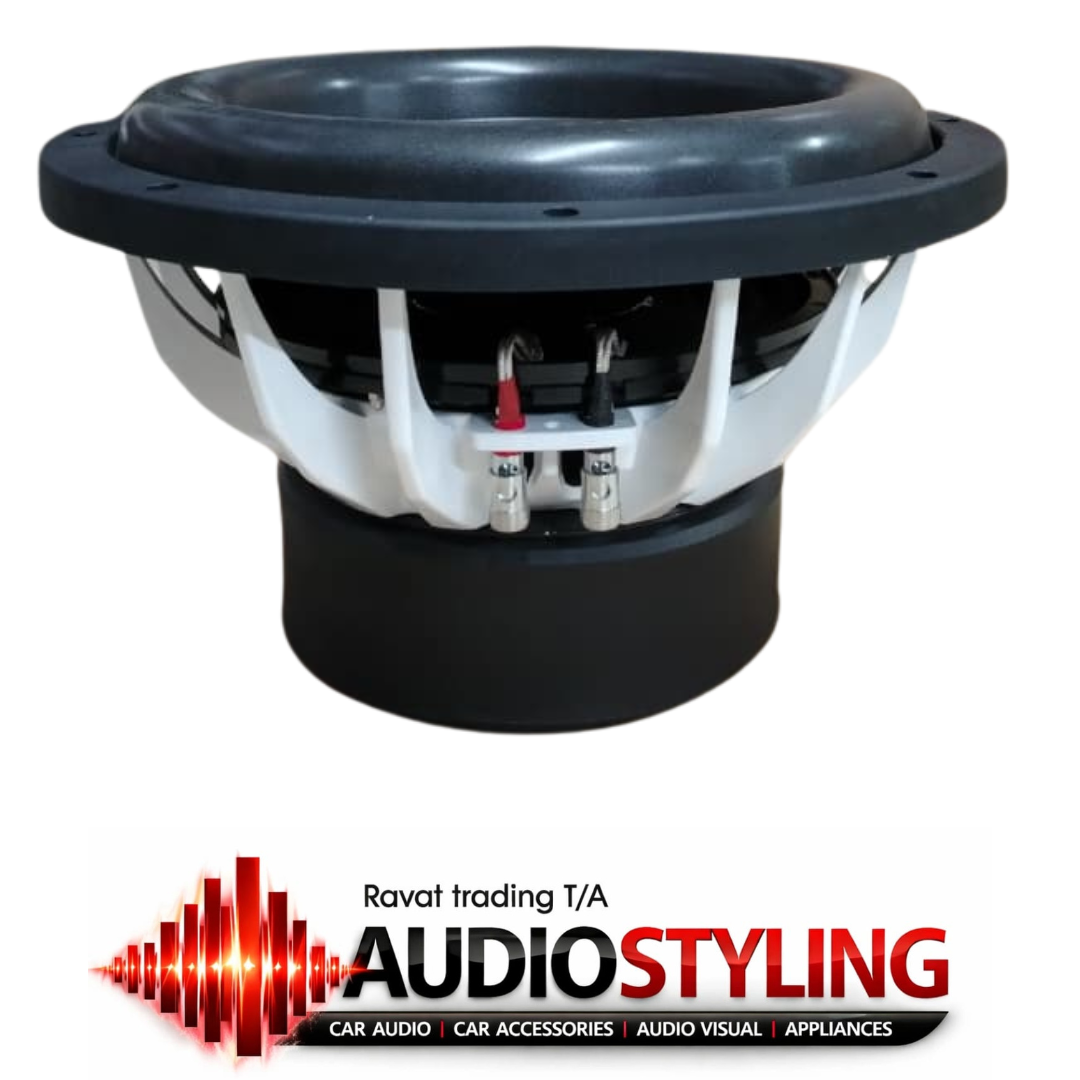

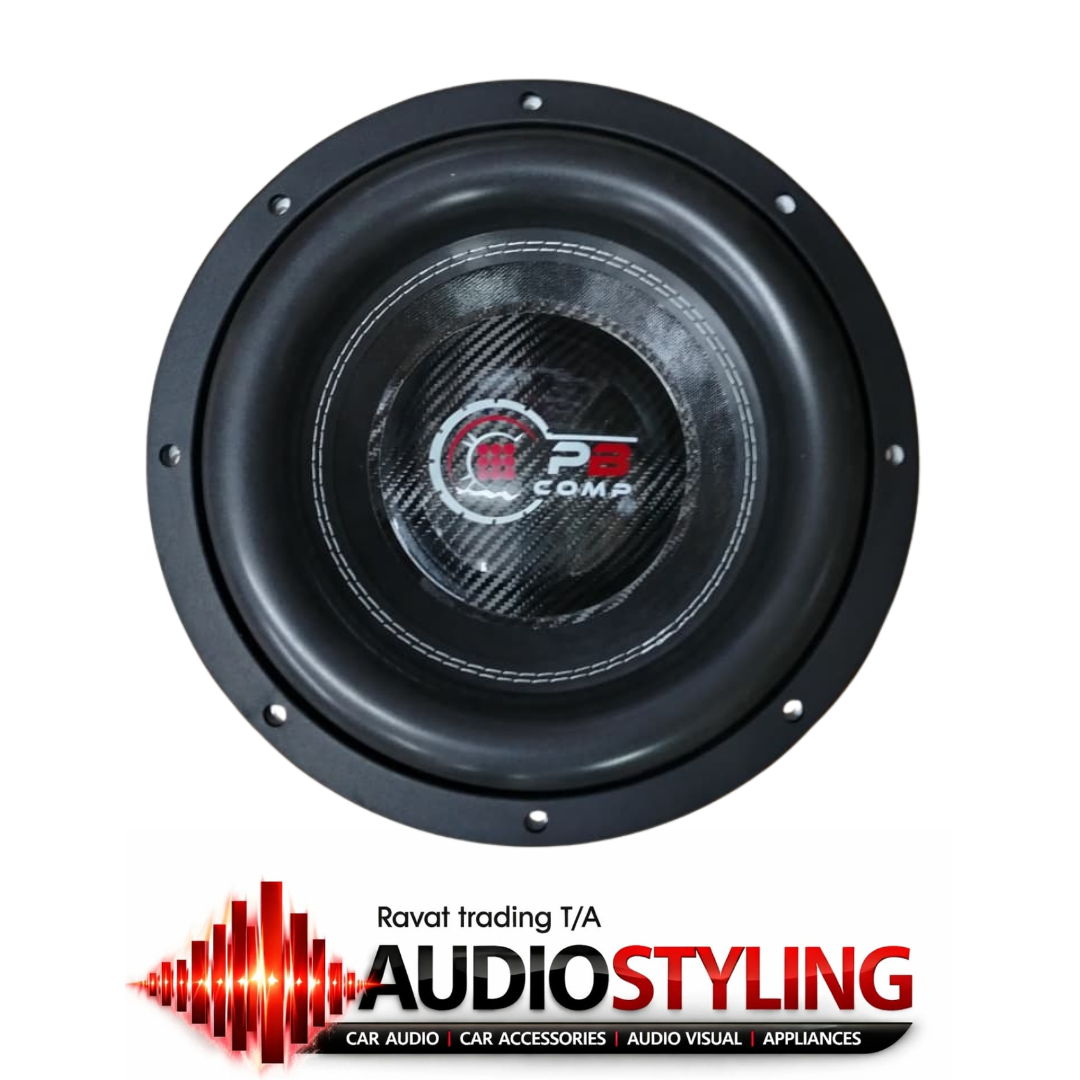

PowerBass Ace-Of-Bass 12”

Description

Specifications:

– Model: ACEOFBASS12D4 / ACE-OF-BASS-12D4 (Also available D2)
– Size: 12″ / 300mm
– Voice Coil: Dual 4-Ohm DVC (2+2 available as D2)
– Final Load: 2-Ohm (parallel) / 8-Ohm (series) for D4 version
– RMS: 1500W RMS
– MAX: 28000W MAX (Dynamic / marketing peak)
– Voice Coil Size: 3″ (76mm)
– Magnet: 160oz+ Double Stack Ferrite
– Fs: ∼32Hz
– Sensitivity: ∼87dB
– Frequency: 20Hz – 500Hz
– Mounting Depth: ∼155mm (6.1″)
– Cutout: ∼282mm
– Recommended Enclosure: 2.0 – 3.0 http://cu.ft net PORTED, tuned 35-40Hz (Best: 2.5 http://cu.ft @ 38Hz for daily loud)
– Sealed: 1.0 – 1.5 http://cu.ft (possible but ported is 2x louder)
