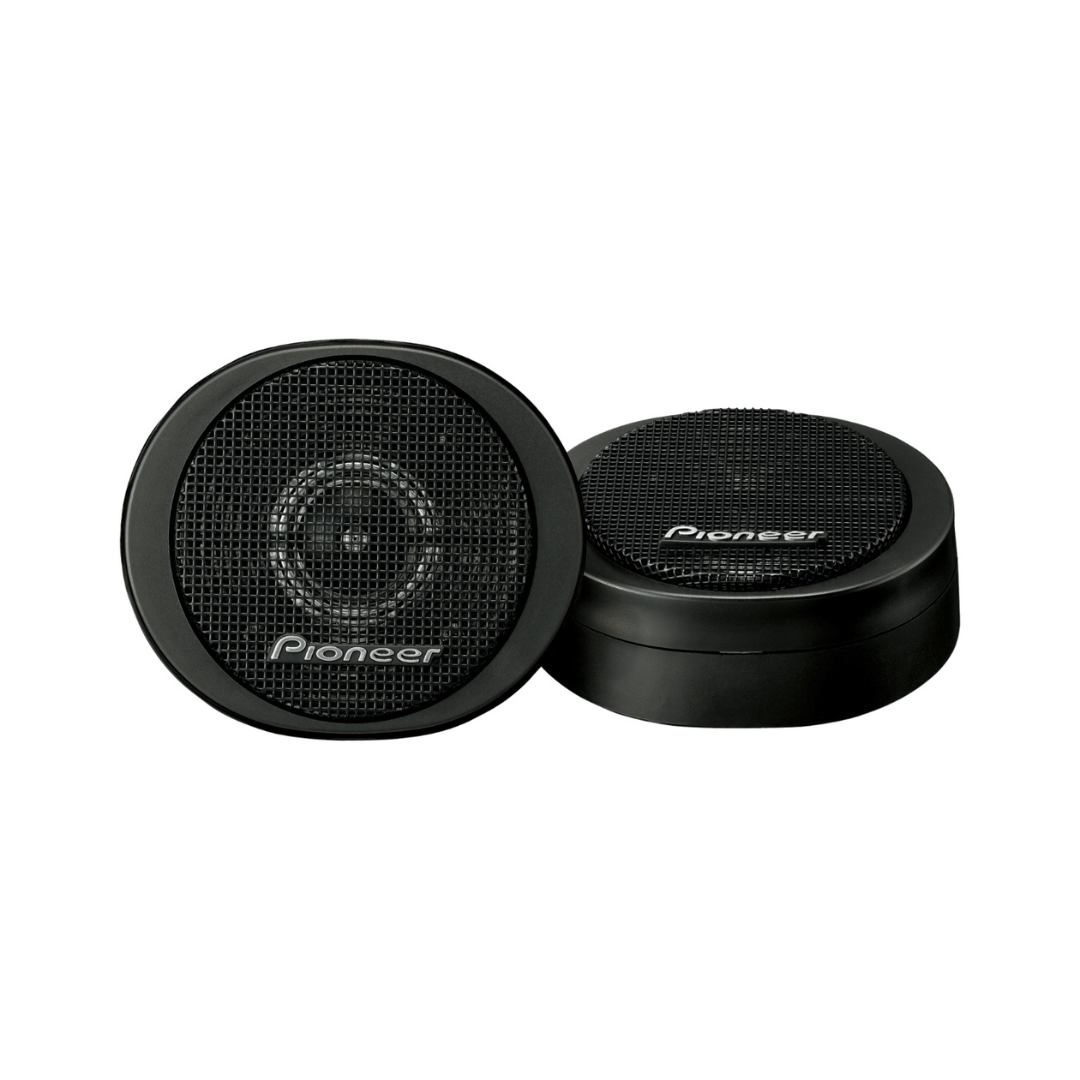

Pioneer TS-S20

Product Overview

Key Features:

– Amorphous Titanium-Coated PPS Dome: 20mm (3/4″) diaphragm built to handle heat, power, and distortion – delivers crisp, ultra-clear highs up to 26kHz.
– High-Power Strontium Magnet: Very efficient and loud – you hear every cymbal, vocal breath, and detail.
– Built-In Crossover Network: Includes attached LC high-pass network on cable – blocks low frequencies, protects tweeter, no external crossover needed.

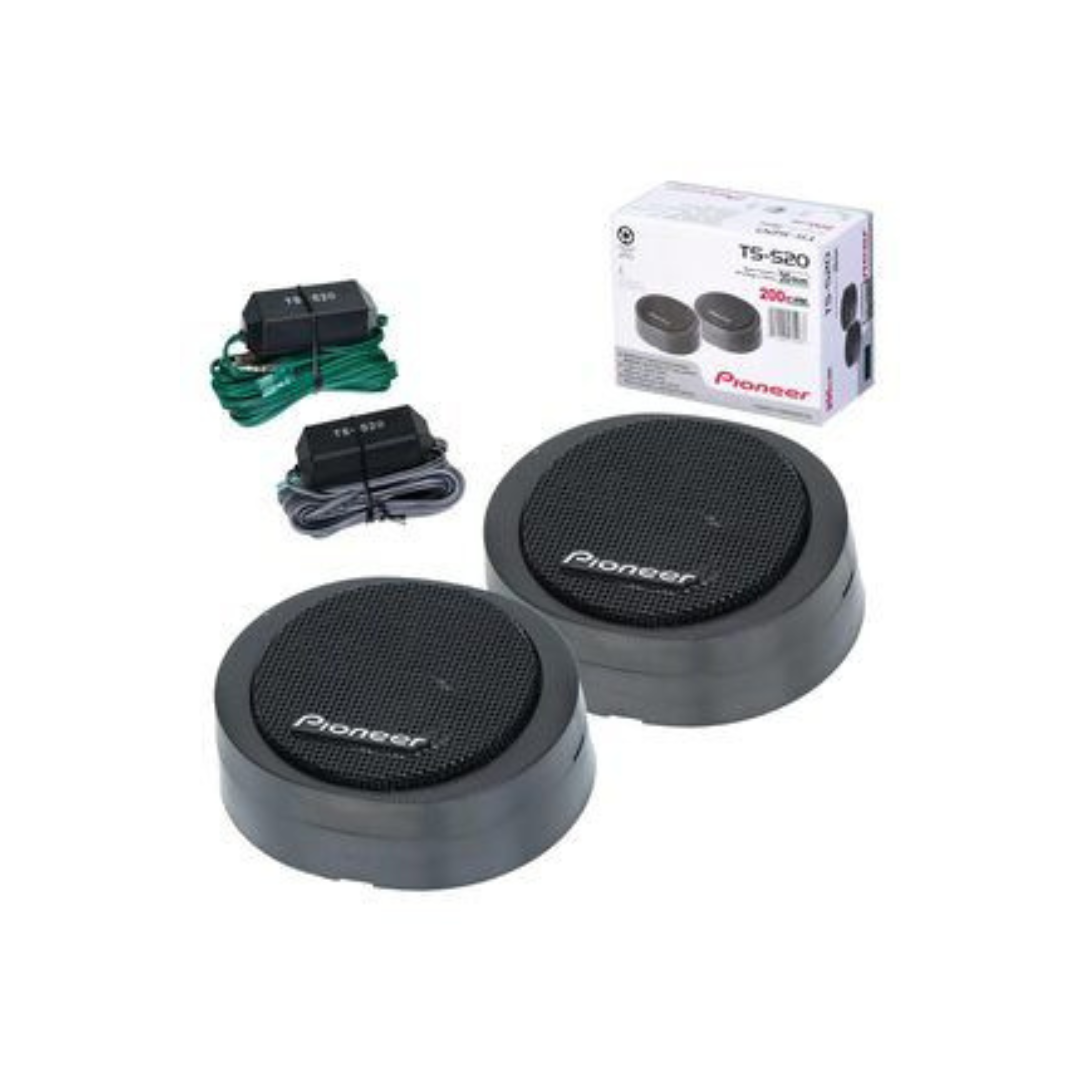

– Super Easy Install: Comes with top-dash holder + surface mount hardware + double-sided tape. Fits on dash, A-pillar, or door in minutes.

Technical Specifications:

– Model: TS-S20
– Type: 3/4″ (20mm) Component Dome Tweeter – Pair
– Power Handling: 50W RMS (100W per pair) / 200W MAX (400W per pair)
– Frequency Response: 3kHz – 26kHz (with network), 1.2kHz – 26kHz (without)
– Crossover Point: 7,000 Hz
– Sensitivity: 92dB @ 1W/1m
– Impedance: 8 Ohms
– Magnet: High-performance Strontium
