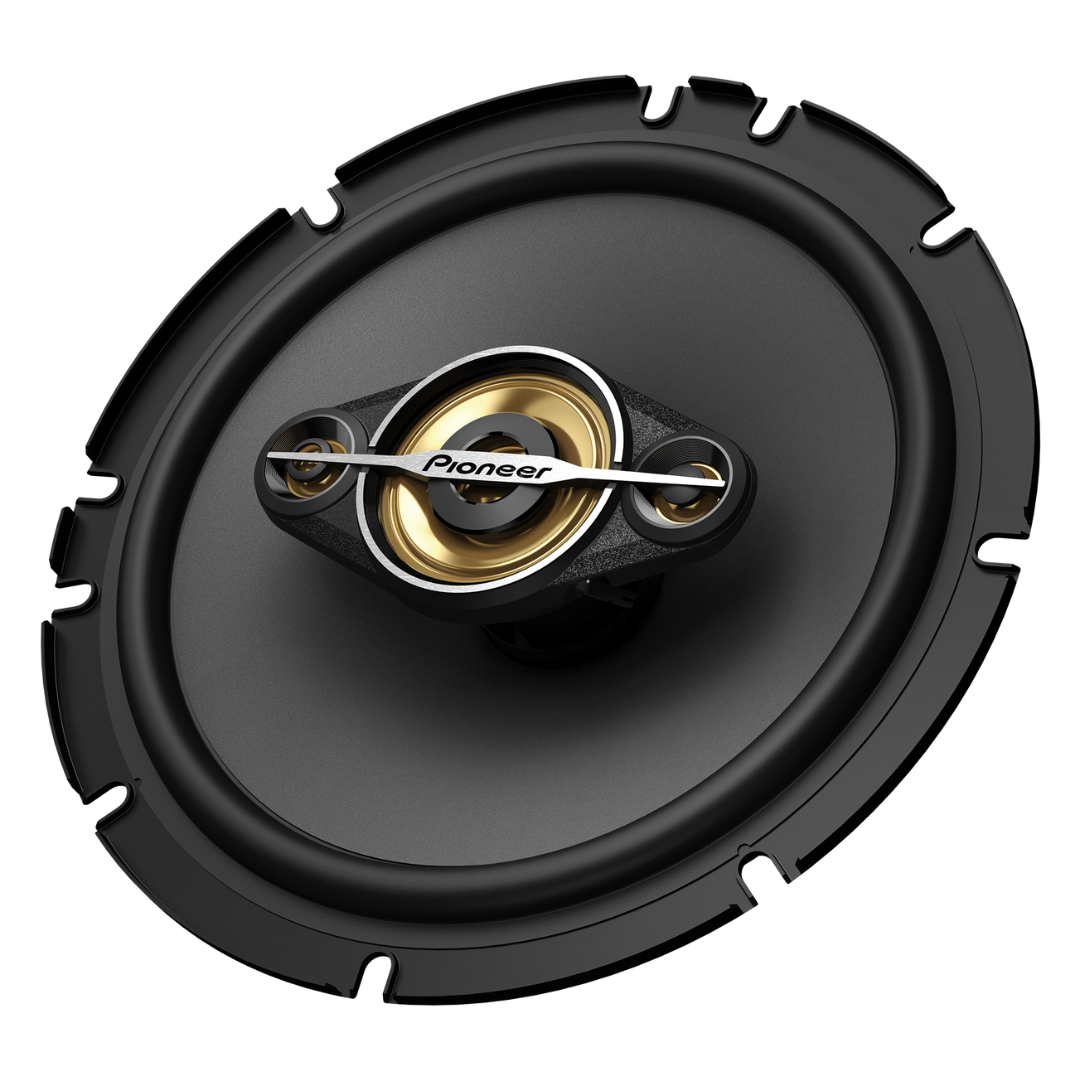

Pioneer 6.5″ 4-Way Speaker With Adaptor TS-A1688S 350W

Description

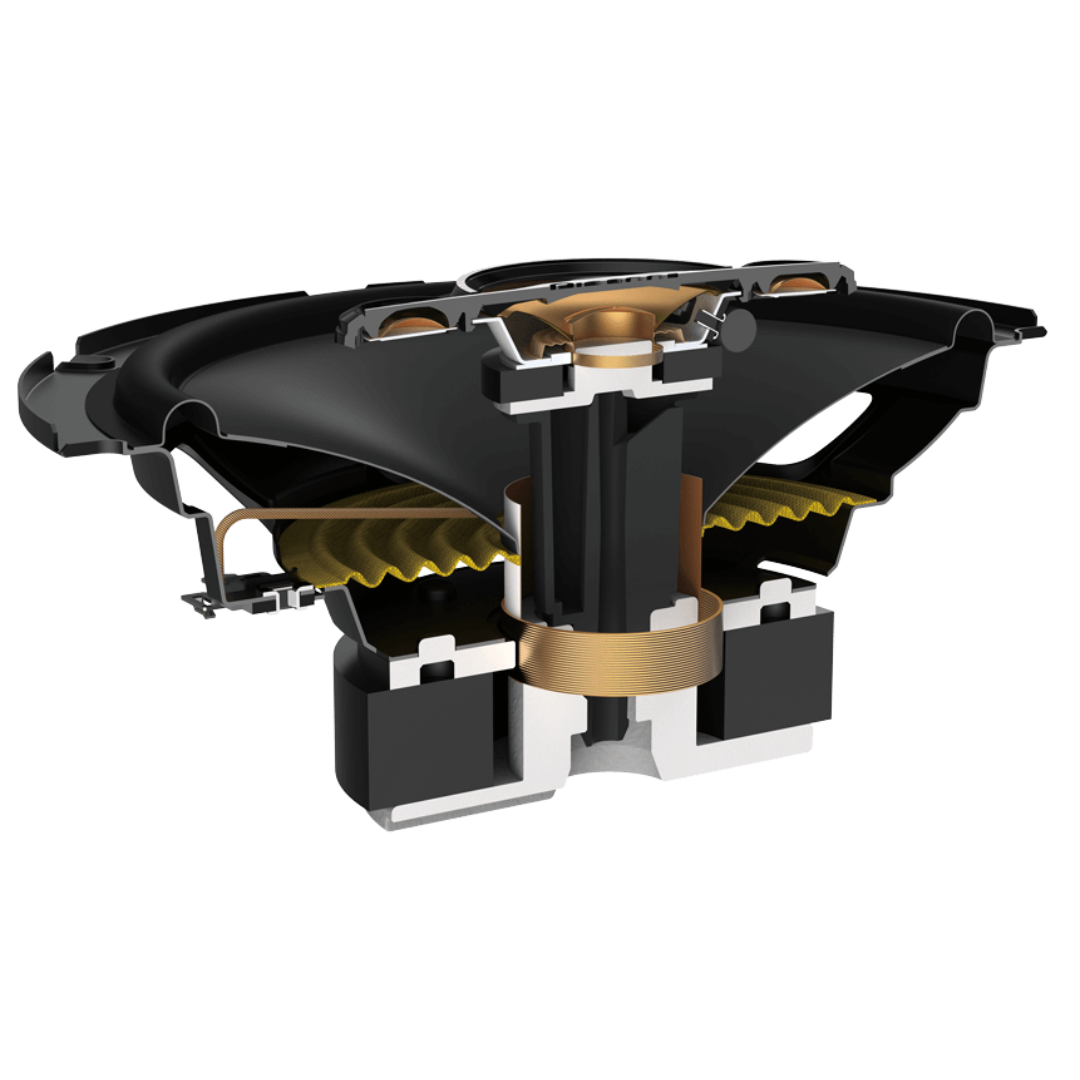

Glass Fiber and Mica Reinforced IMPP™ Cone

The new, rigid Carbon & Mica Reinforced IMPP™ cone and Elastic Polymer Surround provide quicker response and higher sensitivity. Produces deep and rich bass sound.

Open and Smooth

Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

Adapter for Flexible Installation

Based on recent research data, the design of the A-series adapter has been changed to offer only a wider range of installation options, but also higher damping and improved sound.

• GRADE  >  A Series
• Size  >  16.5 cm (6.5″)
• Maximum Music Power  >  350 W
• RMS  >  80 W
• Magnet Weight  >  320 g
• Magnet Size  >  Φ80 X 17
• Frequency Response  >  35 Hz to 29 kHz
• Sensitivity ( 1W / 1m )  >  91 dB
• Impedance  >  4Ω
• Mounting Depth  >  59 mm
• Cut-Out Dimensions  >  ø 144 mm
