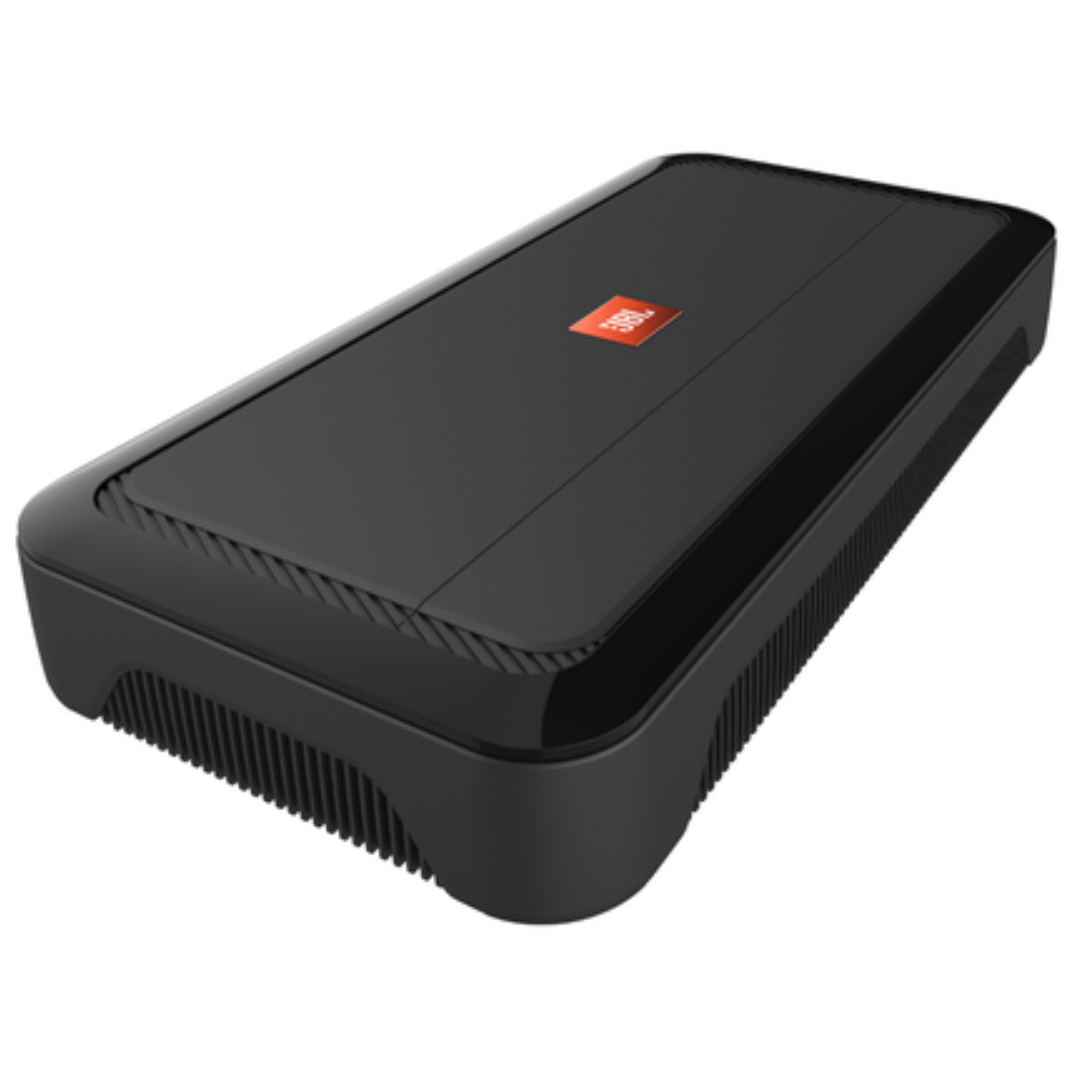

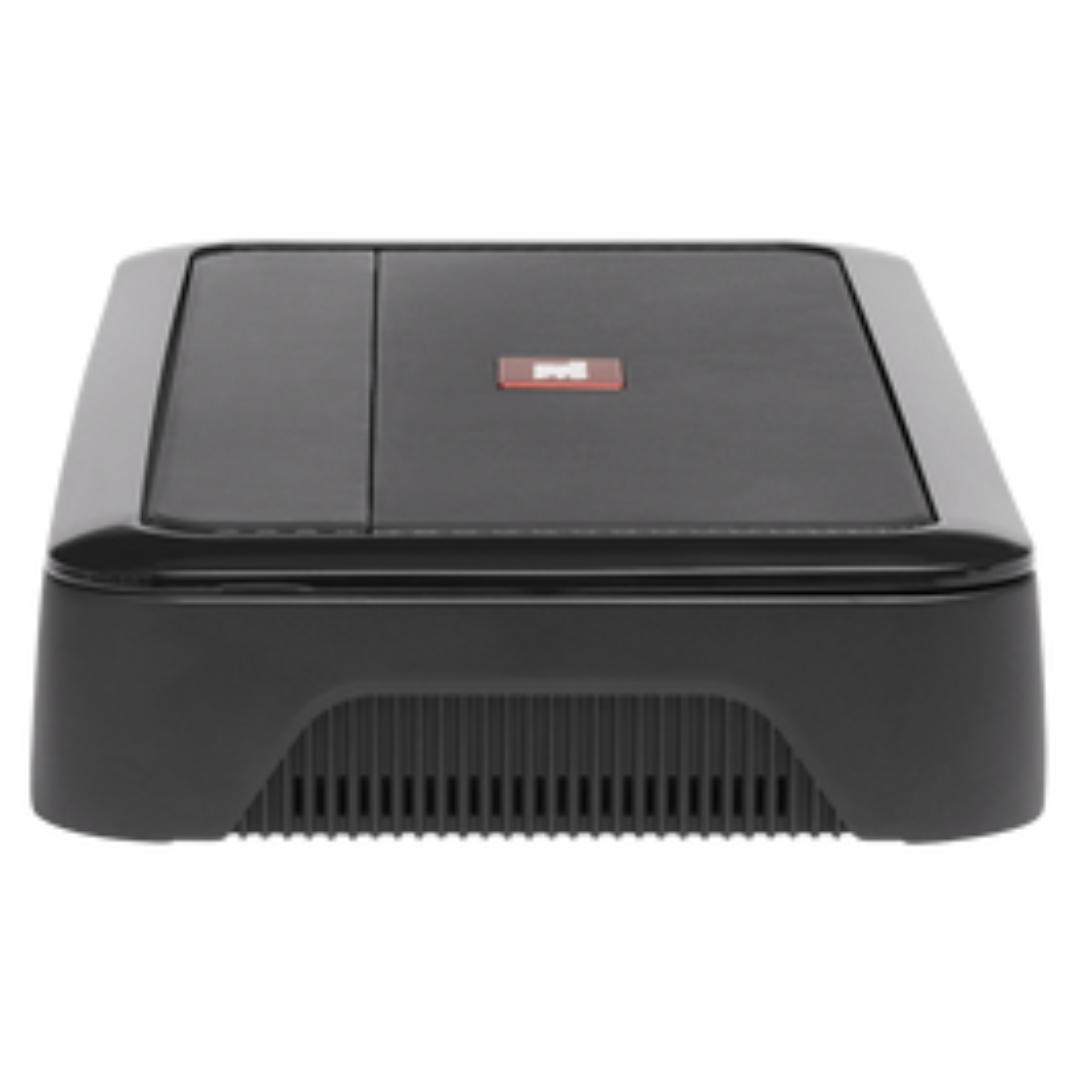

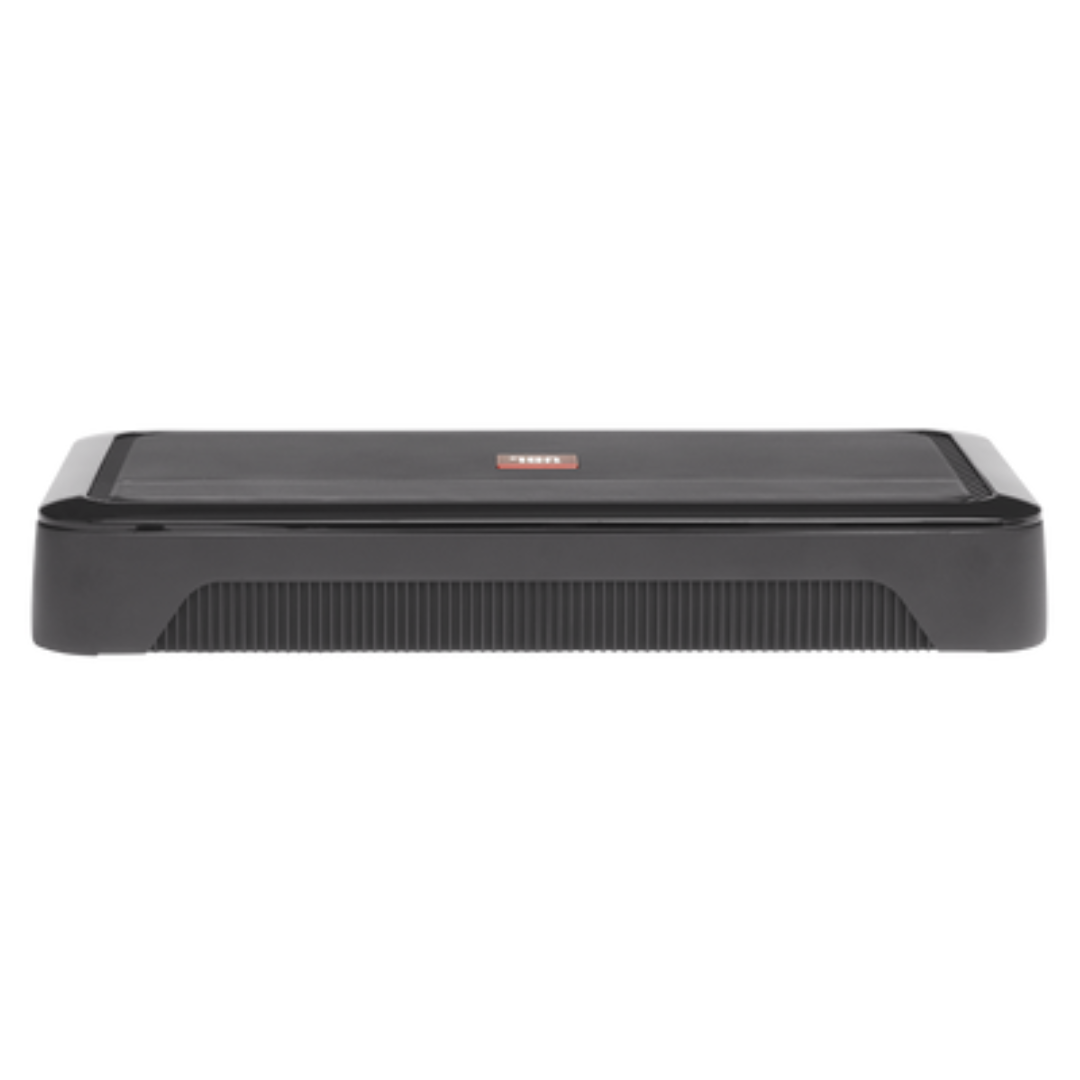

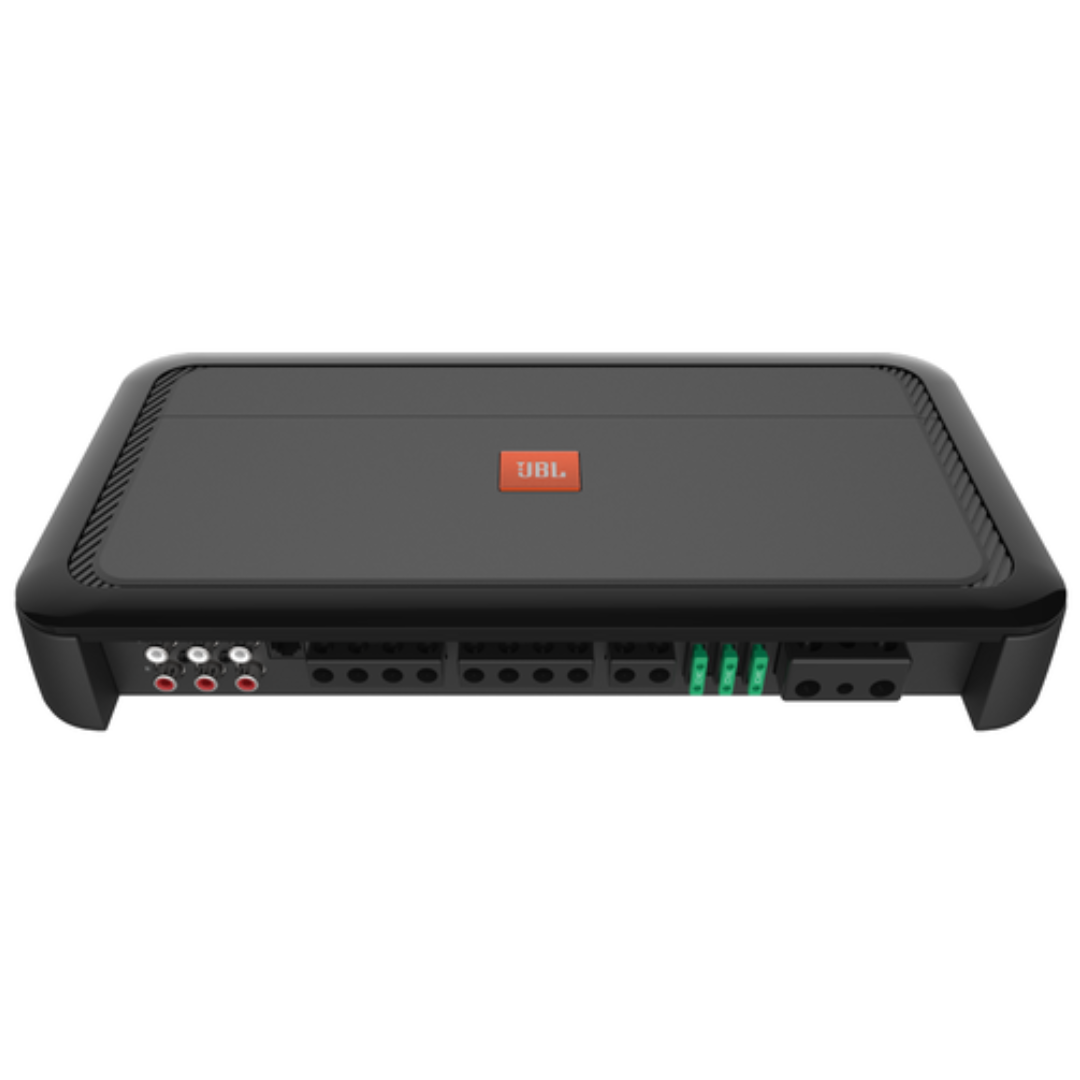

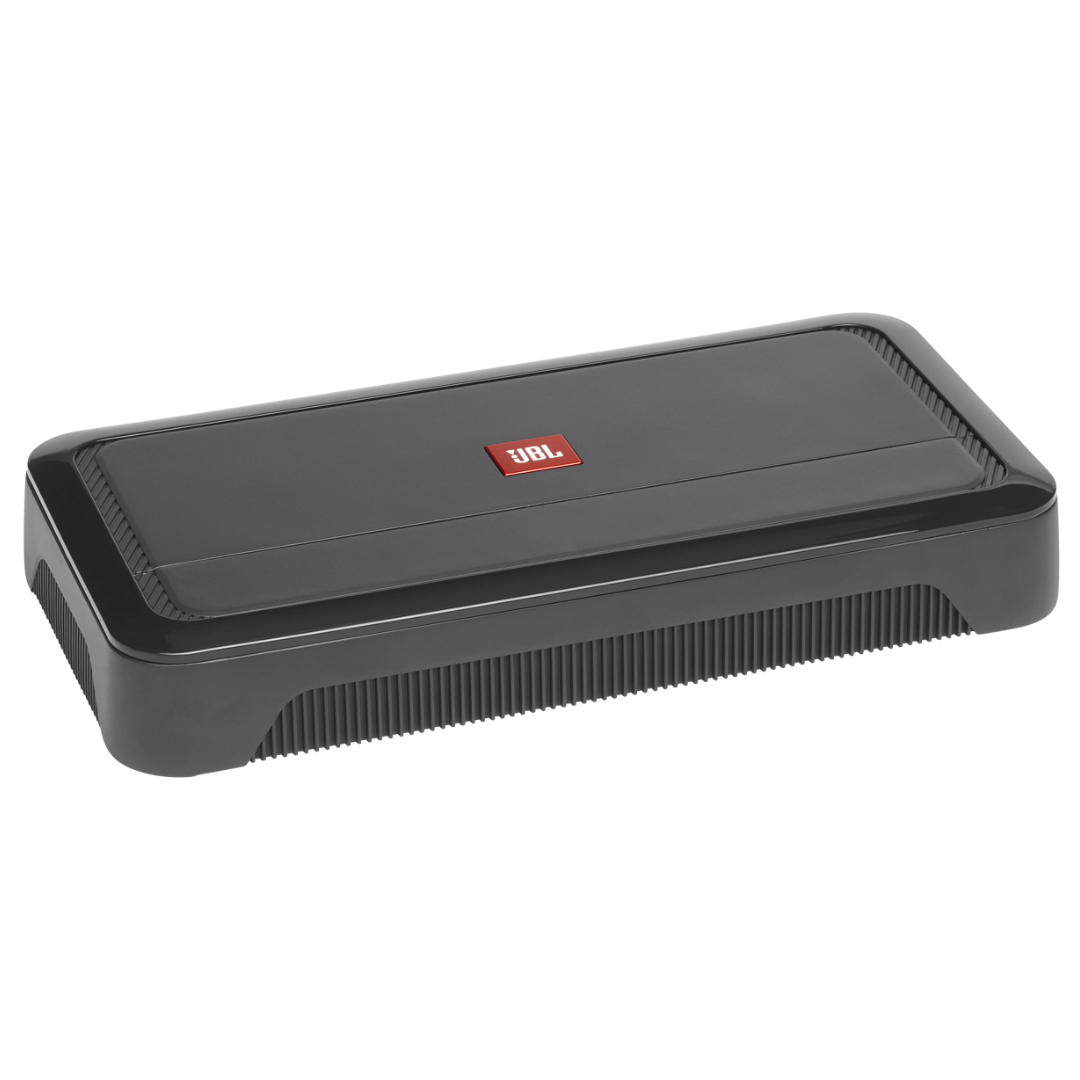

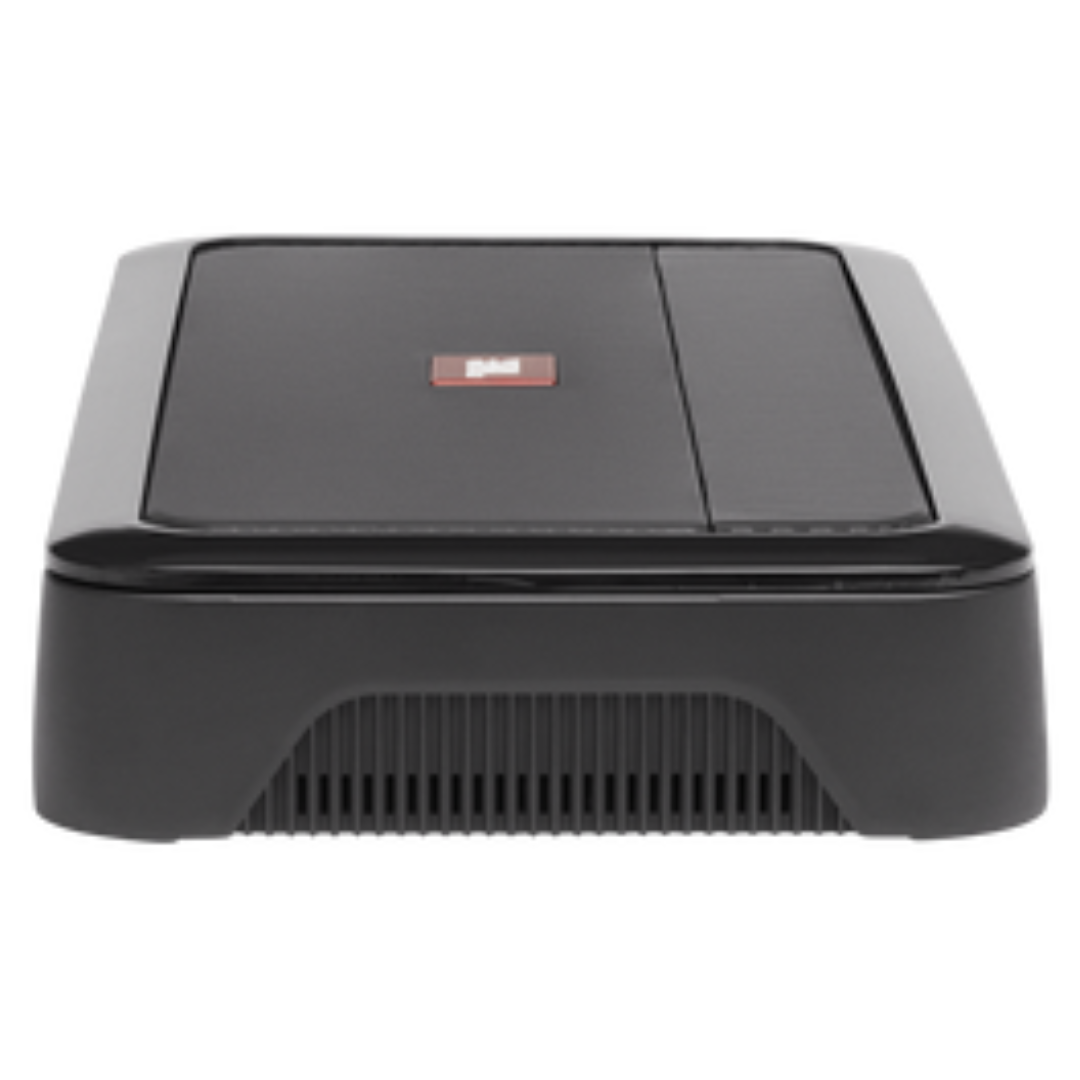

Jbl Club A5055 5-Channel Amplifier 50w Rms

Product Overview

General Specifications

5 channel car amplifier

50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms

65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms

140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms

variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels

low-pass filter (32-320 Hz, 12 dB/octave) on subwoofer channel

bass boost on subwoofer channel (0-12dB at 45Hz)

phase switch on subwoofer channel (0, 180 degrees)

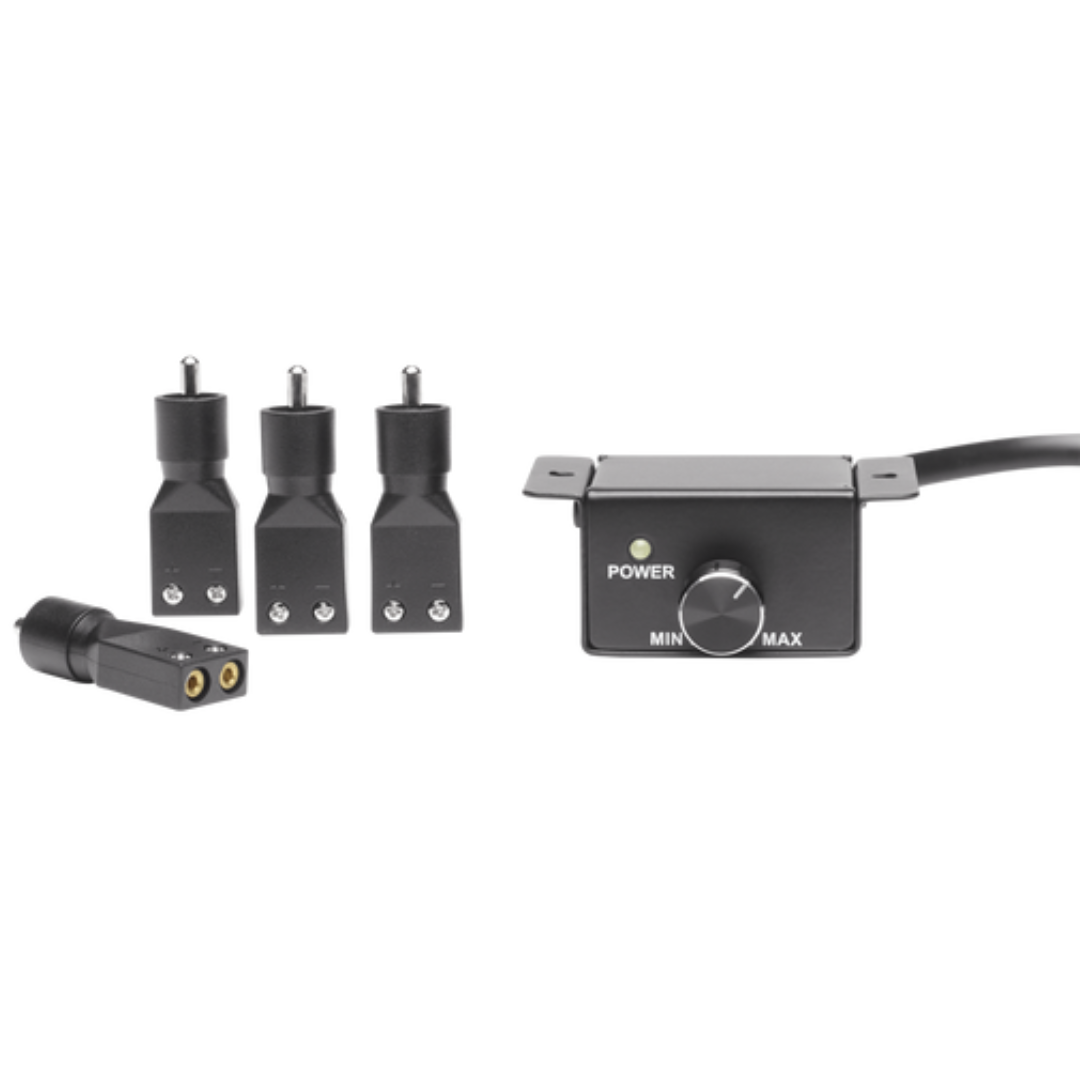

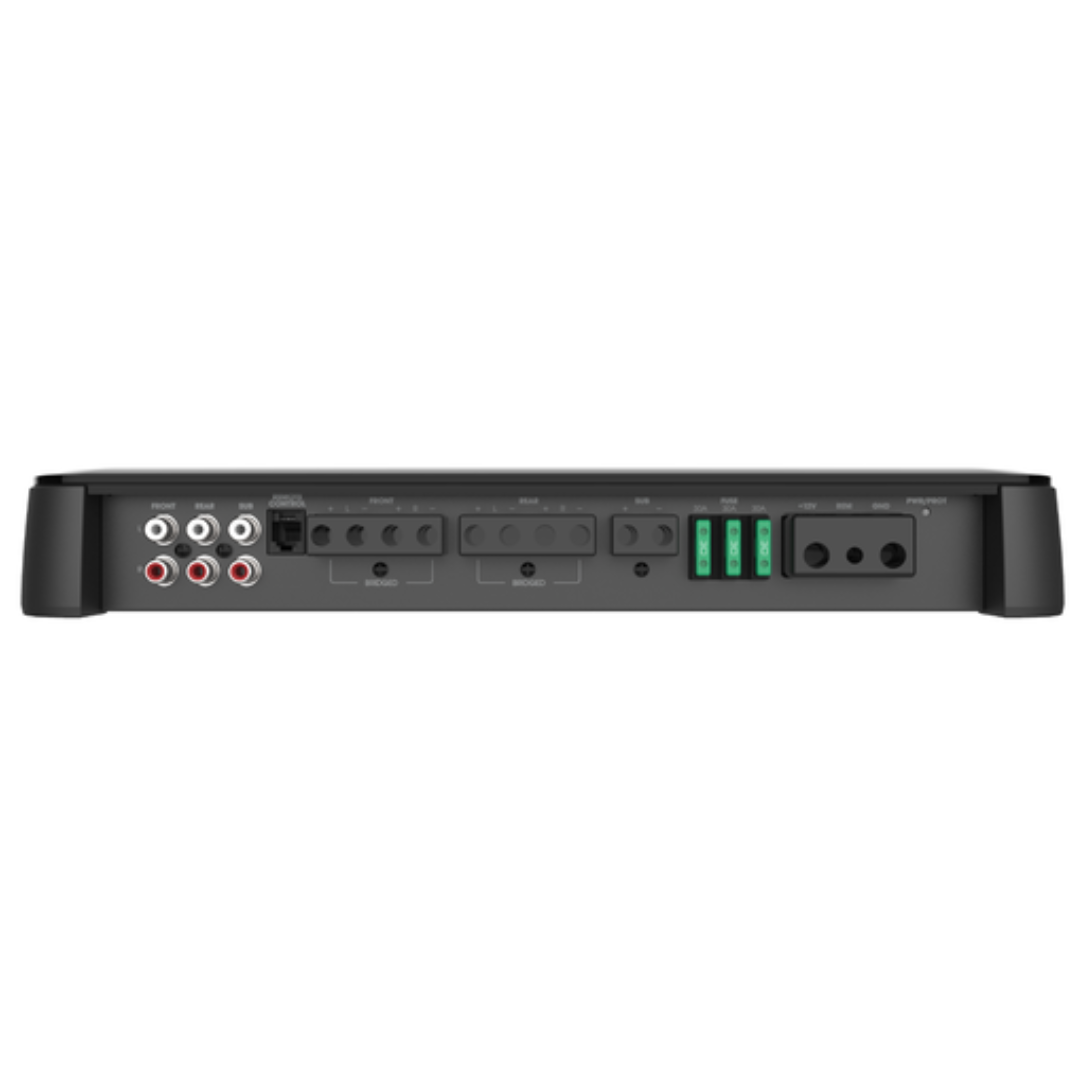

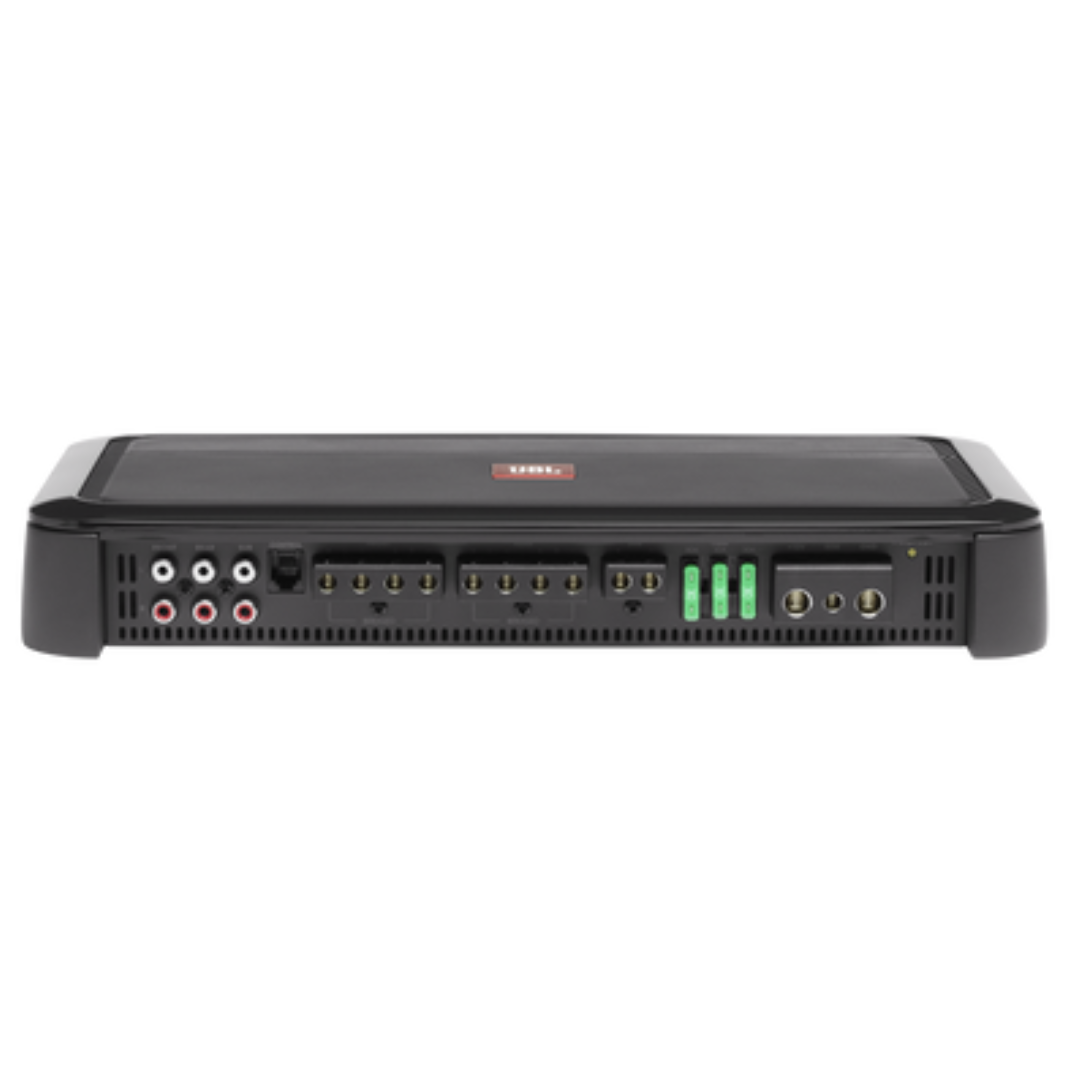

preamp and speaker-level inputs

fuse rating 30A x 3

4-gauge power and ground leads recommended — wiring and hardware not included with amplifier

WxHxD=360mm x 51.3mm x 180mm WxHxD=14-3/16” x 2-1/16″ x7-1/8”
